The JOKARI Cable Knife System 4-70 (Article No. 70000) is a versatile professional tool designed for efficient and precise stripping of common round electrical cables. Its intelligent interchangeable bracket system makes it suitable for a wide range of cable sizes, making it an excellent choice for electricians, installation professionals, and industrial maintenance technicians.
The tool is supplied with interchangeable cable brackets No. 28 and No. 35, covering cable diameters from 8 to 35 mm. By adding compatible brackets, the working range can be extended to 4–70 mm, offering greater flexibility for different cable-stripping requirements.
The ergonomic handle features integrated soft-grip zones for comfortable handling and efficient use of hand force. A viewing window in the metal bracket allows users to monitor the cutting process, while the adjustable cutting depth helps achieve controlled insulation removal. The titanium nitride (TiN)-coated blades are designed for faster cutting, reduced wear, and extended service life.
For added safety, the patented hook-blade protection mechanism with a locking switch helps reduce the risk of accidental cuts. The tool also features four hook-blade penetration-depth settings and a replaceable spare blade stored in the housing.
Available from Arizona Company, your source for professional tools and industrial equipment.
Key Features

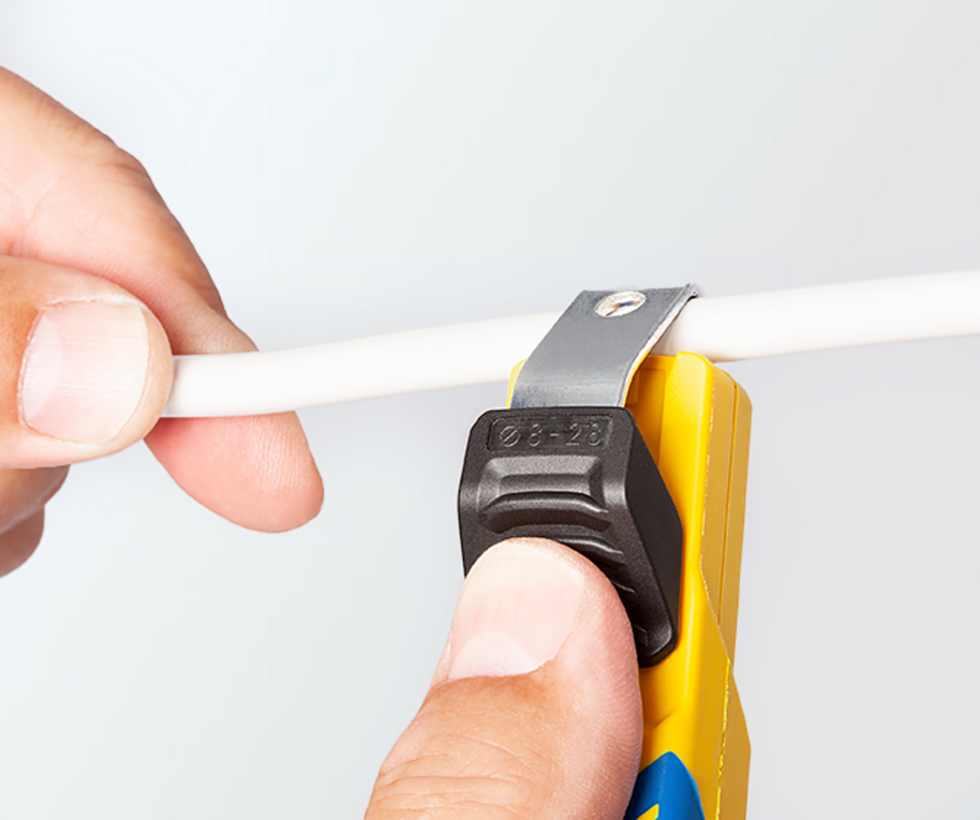

- Interchangeable Bracket System: Enables quick bracket changes to accommodate different cable diameters.
- Flexible Cable Range: Handles common round cables from 8–35 mm as supplied; expandable to 4–70 mm with additional compatible brackets.
- Ergonomic Soft-Grip Handle: Designed for comfortable handling and efficient use of hand force.

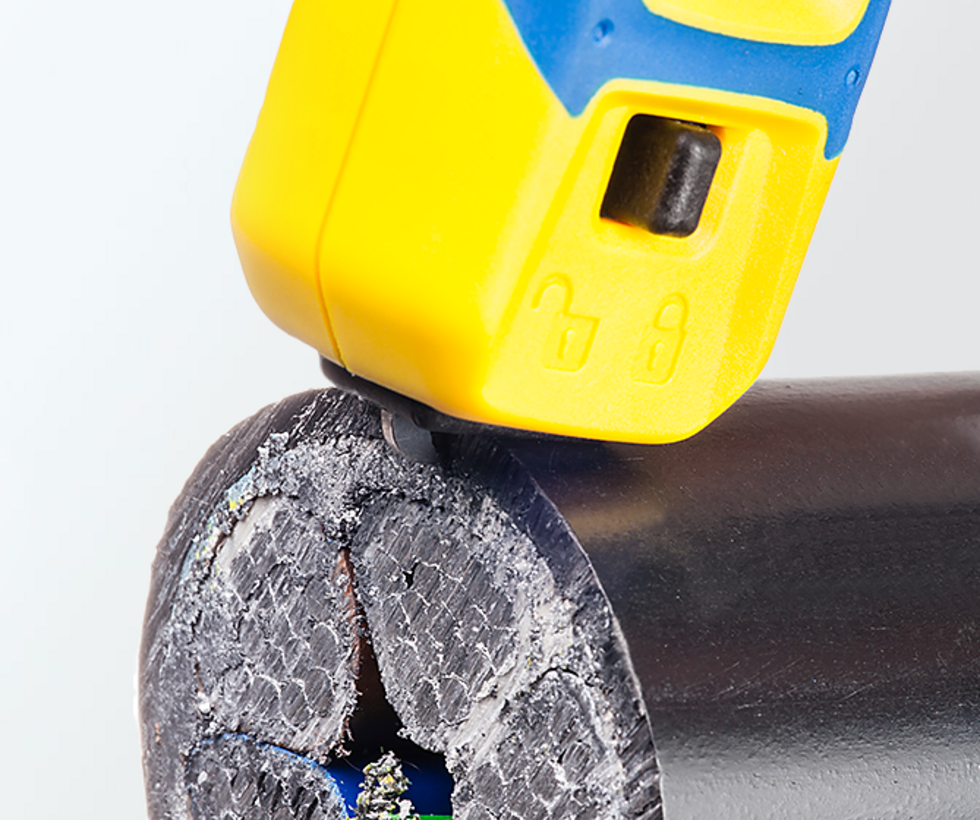

- Protective Hook Blade: Safety mechanism with a locking switch helps reduce accidental cutting injuries.

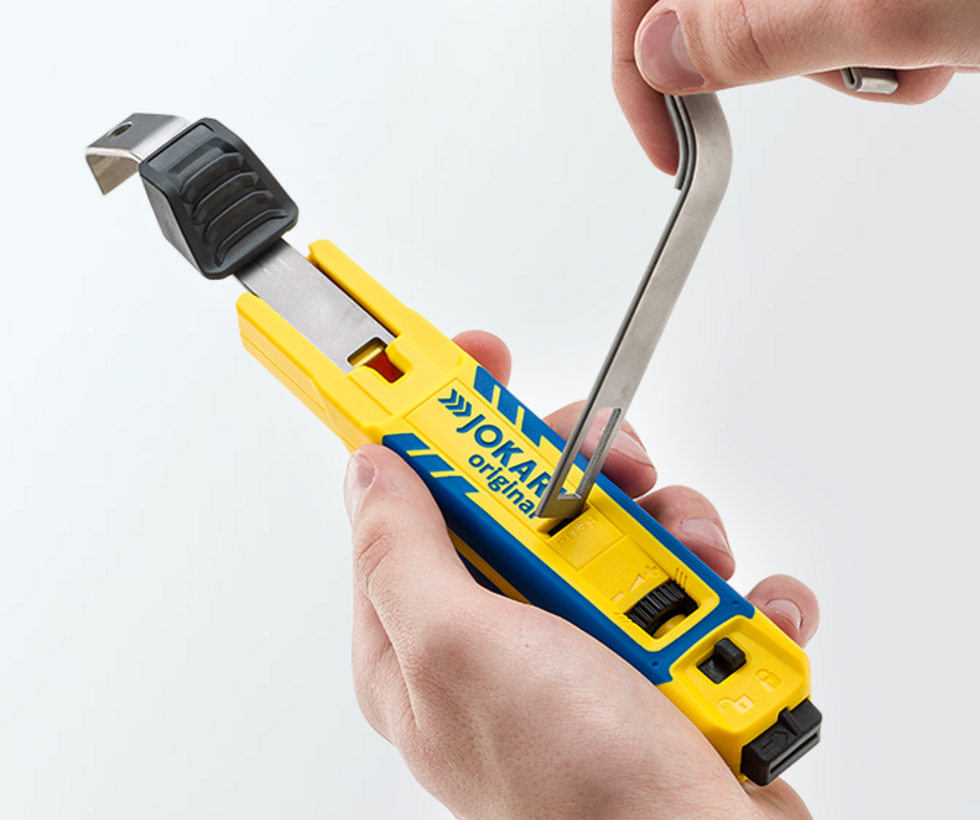

- Adjustable Cutting Depth: Allows precise adjustment of the inner blade using an adjustment screw.
- Four Hook-Blade Settings: Adjustable penetration depths of 2.8, 3.4, 4.0, and 4.6 mm.
- TiN-Coated Blades: Designed for improved cutting speed, reduced wear, and longer service life.

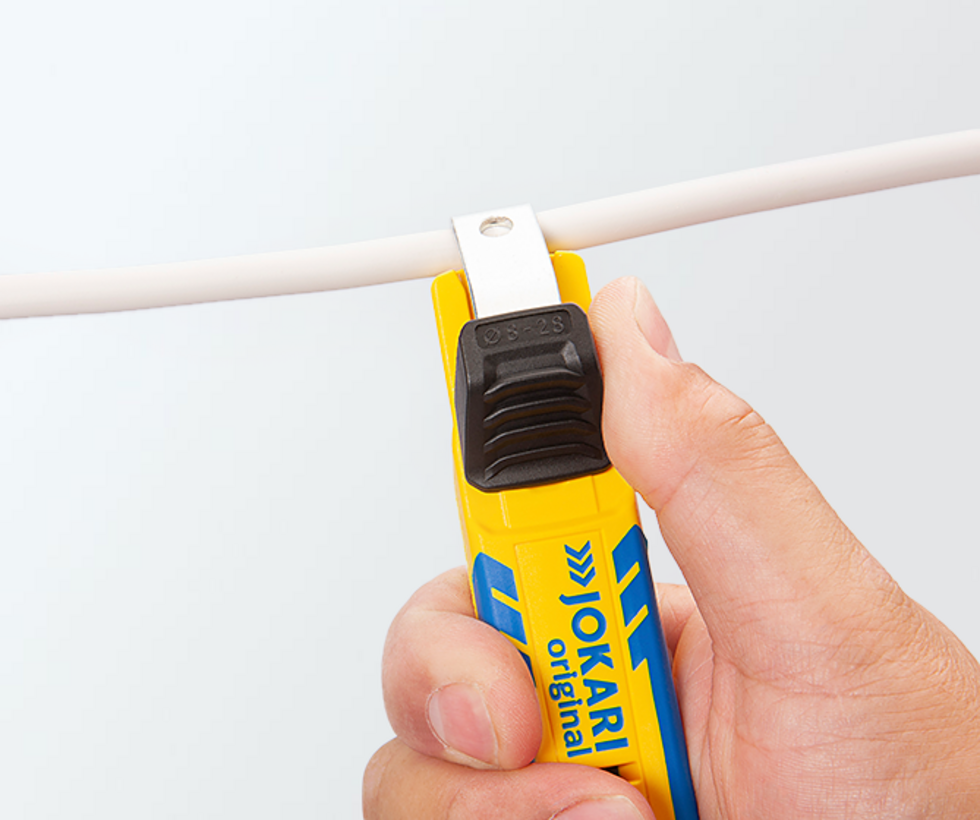

- Viewing Window: Provides visibility of the cutting process through the metal bracket.

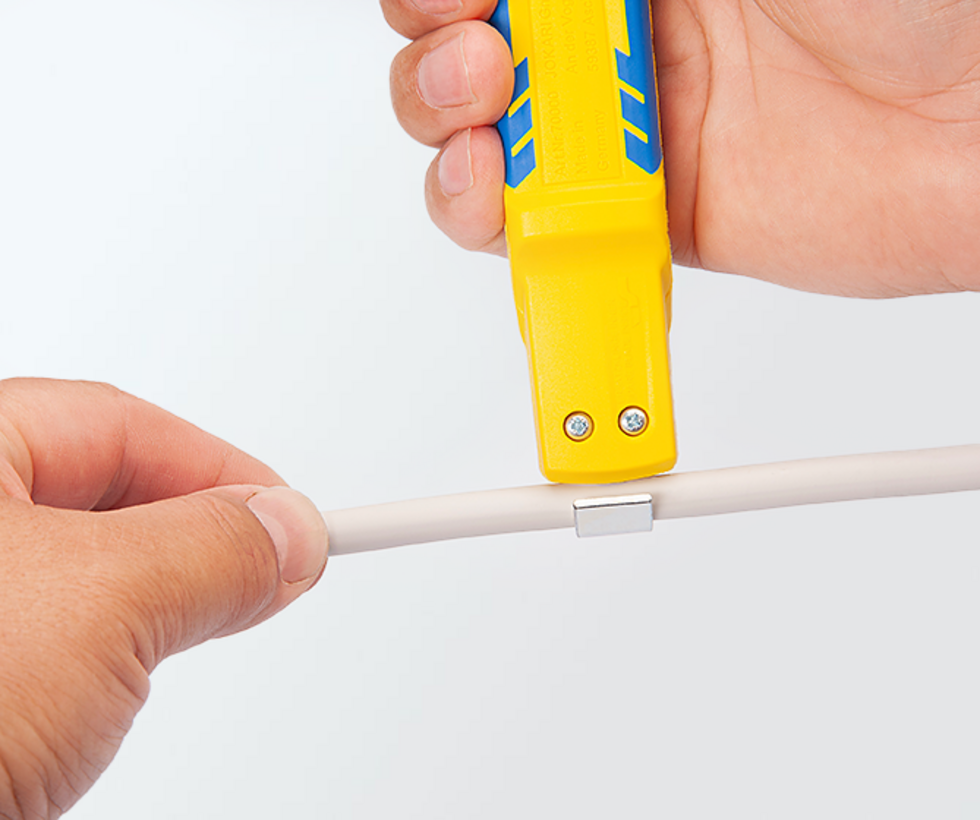

- Automatic Cutting Adaptation: Supports round and longitudinal cuts.
- Replaceable Blades: Includes a spare inner blade stored in the tool housing; the hook blade is also replaceable.
- Safety Tested: TÜV/GS-tested design.
- Made in Germany: Manufactured by JOKARI for professional cable preparation.
